COMPACT UNIT

H Y D R A L I F T

COMPACT UNIT is lite and robust long stroke compact pumping unit made for shallow oil wells, using Hydrog SRP control module, an advance self learning/tunning advance pumping control module.

Powered by a PMM force train, which allows a very slow stroking and long, reaching a full downhole pump control and full filling. Simple footprint, installation and maintance join a full remote monitoring and control.

MODEL T4

MODEL T3

COMPACT UNIT

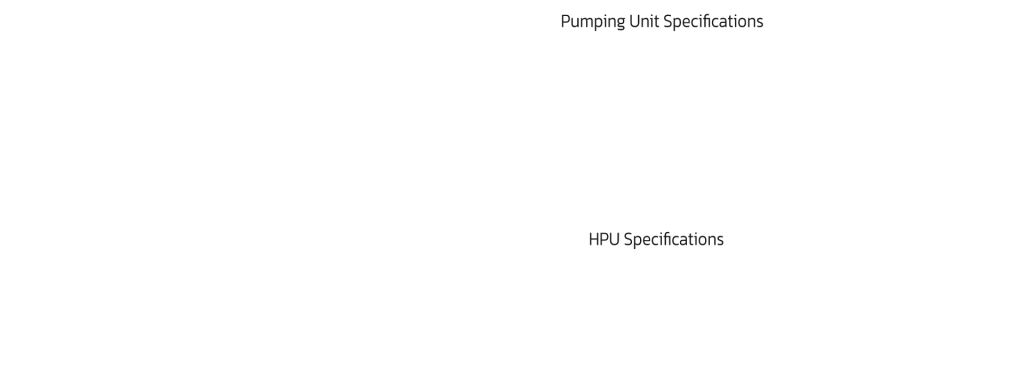

Technical Specs

  • The T3 and T4 units use a hydraulic displacement system for longitudinal movement type ¨walking system¨.​
  • The HPU´s using permanent magnet motro for the power train.​
  • The rod pump controller (RCP) is provided by UNICO.​

  • (*) Depends on the conditions in the operation

Download brochure
